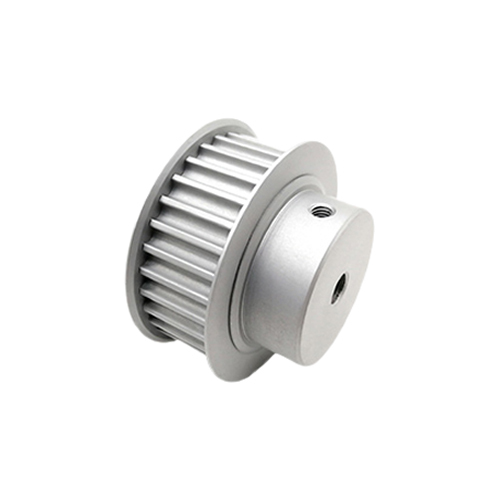

Send Inquiry14mm Premium Grade Stainless Steel Pitch Timing Pulleys
Price 400 INR/ Piece
MOQ : 20 Pieces
14mm Premium Grade Stainless Steel Pitch Timing Pulleys Specification
- Pulley Type
- 14mm Pitch Timing Pulley
- Power Source
- Mechanical
- Bearing Type
- Plain Bore or Ball Bearing as Required
- Mounting Type
- Flange-Mounted, Taper Lock, or Pilot Bore
- Bore
- Standard and Custom Bore Sizes Available
- Number Of Grooves
- Single or Multiple (as per requirement)
- Features
- Corrosion-Resistant, High Tensile Strength, Precise Pitch Accuracy
- Application
- Power Transmission, Conveyor Systems, Industrial Automation
- Usage
- Industrial
- Material
- Aluminum Alloy, Steel
- Size
- Various Sizes Available
- Product Type
- Timing Pulleys
- Color
- Different Available
- Static Balance
- Precision Balanced for High-Speed Operation
- Tooth Profile
- STD, HTD, or Custom Profiles Available
- Number of Teeth
- Customizable as per Application
- Surface Finish
- Anodized/Polished
- Operating Temperature Range
- -20C to 120C
- Hub Style
- Pilot Bore, Finished Bore, Taper Lock
- Pitch
- 14mm
- OEM Support
- Available
- Packaging
- Carton/Wooden Box as per Quantity
14mm Premium Grade Stainless Steel Pitch Timing Pulleys Trade Information
- Minimum Order Quantity
- 20 Pieces
- FOB Port
- AHMEDABAD
- Supply Ability
- 5000 Pieces Per Month
- Delivery Time
- 10 Days
- Sample Available
- Yes
- Sample Policy
- Contact us for information regarding our sample policy
- Packaging Details
- Standard Packing & As Per Client's Requirement.
- Main Export Market(s)
- Asia, Middle East, Africa
- Main Domestic Market
- All India
- Certifications
- ISO 9001:2015
About 14mm Premium Grade Stainless Steel Pitch Timing Pulleys
Condition New
Material Stainless Steel
Quality Premium
PART NO PULLEY SIZE PULLEY TYPE MATERIAL NO OF TEETH PD A HD ID PW L MIM BORE D MAX BORE APPROX WEIGHT kg
N0541 2814M85 1F STEEL 28 12478 128 100 102 117 240 670 770
N0542 3014M85 1F STEEL 30 13369 138 100 102 117 240 670 910
N0543 3214M85 1F STEEL 32 14260 154 100 102 117 240 670 1050
N0544 3414M85 1F STEEL 34 15152 160 100 102 117 240 670 1190
N0545 3614M85 1F STEEL 36 16043 168 100 102 117 320 670 1320
N0546 3814M85 1F STEEL 38 16934 184 120 102 117 320 800 1515
N0547 4014M85 1F STEEL 40 17825 188 135 102 117 320 900 1710
N0548 4414M85 1F STEEL 44 19608 212 135 102 117 320 900 2330
N0549 4814M85 1F STEEL 48 21390 226 150 102 117 320 1000 2500
N0550 5614M85 3F CAST IRON 56 24955 256 150 207 102 102 320 900 2500
N0551 6414M85 3F CAST IRON 64 28521 296 150 240 102 102 320 900 3050
N0552 7214M85 3 CAST IRON 72 32086 150 278 102 102 320 900 2826
N0553 8014M85 3 CAST IRON 80 35651 150 314 102 102 320 900 3010
N0554 9014M85 3 CAST IRON 90 40107 150 358 102 102 320 900 3300
N0555 11214M85 3 CAST IRON 112 49911 150 456 102 102 320 900 4180
N0556 14414M85 3 CAST IRON 144 64171 150 600 102 102 320 900 5240
N0557 16814M85 3 CAST IRON 168 74866 150 706 102 102 320 900 6030
N0558 19214M85 3 CAST IRON 192 85562 165 813 102 102 320 1000 7020
Customizable Tooth Profile and Size
Choose from STD HTD or entirely custom tooth profiles and specify the number of teeth bore diameter pulley diameter and groove requirements to meet your applications precise needs This flexibility ensures compatibility with a wide array of synchronous belts and machines
Precision Engineering and Durability
Every 14mm pitch timing pulley is manufactured using highquality aluminum alloy or steel providing excellent tensile strength and corrosion resistance The parts are precisionbalanced for reliable highspeed operation and undergo anodized or polished finishing for added longevity
Ideal for Demanding Industrial Applications
These pulleys are built for robust power transmission conveyor systems and industrial automation They operate efficiently across a temperature range of 20C to 120C and are designed to meet DINISO standards guaranteeing high performance in challenging environments
FAQs of 14mm Pitch Timing Pulleys
Q How do I select the correct 14mm pitch timing pulley for my application
A To choose the appropriate pulley determine your needed tooth profile STD HTD or custom the number of teeth material aluminum alloy or steel bore size hub style and whether single or multiple grooves are required Providing belt specifications and intended load will ensure optimal selection
Q What advantages do anodized or polished finishes provide for these pulleys
A Anodized and polished finishes enhance corrosion resistance and extend the service life of the pulley especially in demanding or humid industrial environments This also facilitates smoother operation and easier maintenance
Q When is it necessary to use a precisionbalanced timing pulley
A Precision balancing is critical for highspeed applications where vibration and imbalance could lead to premature wear system noise or potential damage These pulleys are balanced ensuring smooth rotation and dependable performance in fastrunning machinery
Q Where can 14mm pitch timing pulleys be used effectively
A They are widely utilized in industrial sectors such as power transmission conveyor systems and automation solutions where synchronous belt drives are required Customizability makes them suitable for a broad range of equipment
Q What is the process for ordering a custom pulley configuration
A Customers can specify all customization parameters including tooth profile number of teeth diameter material bore size mounting style and bearing type OEM support is available and products are packaged securely based on quantity for safe delivery
Q How do these pulleys ensure compatibility with synchronous timing belts
A Their tooth profiles pitch and groove configurations are engineered to precisely match 14mm synchronous timing belts ensuring accurate fit efficient power transfer and reduced wear on the belt and pulley system
