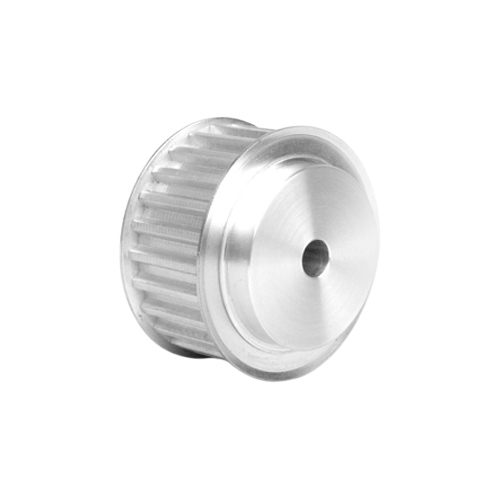

14mm Corrosion Free SS Pitch Timing Pulleys

Name: 14mm Corrosion Free SS Pitch Timing Pulleys
Brand: UMA ENGINEERING
Price: 300 INR
Availability: InStock

Price 300 INR/ Piece

Get a Price/Quote

MOQ : 20 Pieces

14mm Corrosion Free SS Pitch Timing Pulleys Specification

Bearing Type
Not Integrated (Solid Pulley Construction)

Pulley Type
14mm Pitch Timing Pulley

Power Source
Mechanical (Driven by Motor or Engine)

Bore
Custom Machined (Standard and Tapered Available)

Load Capacity
Up to 10,000 kg, depending on pulley size & material Kilograms (kg)

Number Of Grooves
Single and Double Available

Application
Synchronous Power Transmission in Industrial Machinery

Features
Anti-Corrosion Coating, Precise Tooth Profile, Durable, Low Noise Operation

Mounting Type
Pilot Bore / Finished Bore / Taper Lock as per requirement

Chain Length
Compatible with 14mm pitch timing belts of various lengths

Diameter
Sizes range from 56 mm to 504 mm (varies per model & no. of teeth) Millimeter (mm)

Usage
Industrial

Material
High Grade Aluminum Alloy

Size
Various Sizes Available

Product Type
Timing Pulleys

Color
Different Available

Custom Design
Offered per drawing or sample

Surface Treatment
Shot Blasted and Deburred

Operating Temperature
-20C to 120C

Finish
Anodized/Phosphate/Custom Finish

Teeth Options
20 to 180 teeth

Hub Type
Single or Double Flange

Tooth Profile
Standard HTD 14M

Run Out Tolerance
0.05 mm

Static Balance Standard
ISO Grade G6.3

14mm Corrosion Free SS Pitch Timing Pulleys Trade Information

Minimum Order Quantity
20 Pieces

FOB Port
AHMEDABAD

Supply Ability
5000 Pieces Per Month

Delivery Time
10 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Standard Packing & As Per Client's Requirement.

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001:2015

About 14mm Corrosion Free SS Pitch Timing Pulleys

Condition - New
Material - Stainless Steel
Quality - Premium

PART NO	PULLEY SIZE	PULLEY TYPE	MATERIAL	NO. OF TEETH	PD	A	HD	ID	PW	L	MIM BORE (D)	MAX BORE	APPROX WEIGHT (kg)
N0559	28-14M-115	1F	STEEL	28	124.78	128	100	-	133	148	32.0	67.0	9.20
N0560	30-14M-115	1F	STEEL	30	133.69	138	100	-	133	148	32.0	67.0	11.20
N0561	32-14M-115	1F	STEEL	32	142.60	154	100	-	133	148	32.0	67.0	13.20
N0562	34-14M-115	1F	STEEL	34	151.52	160	100	-	133	148	32.0	67.0	14.80
N0563	36-14M-115	1F	STEEL	36	160.43	168	100	-	133	148	32.0	67.0	16.60
N0564	38-14M-115	1F	STEEL	38	169.34	184	120	-	133	148	32.0	67.0	19.20
N0565	40-14M-115	1F	STEEL	40	178.25	188	135	-	133	148	32.0	67.0	20.56
N0566	44-14M-115	1F	STEEL	44	196.08	212	140	-	133	148	32.0	67.0	21.93
N0567	48-14M-115	1F	STEEL	48	213.90	226	150	-	133	148	32.0	100.0	25.00
N0568	56-14M-115	1F	STEEL	56	249.55	256	150	-	133	148	32.0	100.0	27.50
N0569	64-14M-115	3F	CAST IRON	64	285.21	296	150	240	133	133	32.0	90.0	30.10
N0570	72-14M-115	3	CAST IRON	72	320.86	-	150	278	133	133	32.0	90.0	32.83
N0571	80-14M-115	3	CAST IRON	80	356.51	-	150	314	133	133	32.0	90.0	35.55
N0572	90-14M-115	3	CAST IRON	90	401.07	-	150	358	133	133	32.0	90.0	41.00
N0573	112-14M-115	3	CAST IRON	112	499.11	-	150	456	133	133	32.0	90.0	54.40
N0574	144-14M-115	3	CAST IRON	144	641.71	-	165	600	133	133	32.0	100.0	67.80
N0575	168-14M-115	3	CAST IRON	168	748.66	-	150	706	133	133	32.0	100.0	75.80
N0576	192-14M-115	3	CAST IRON	192	855.62	-	165	813	133	133	32.0	100.0	88.30

Precision Engineering for Reliable Performance

Each 14mm pitch timing pulley is crafted with accurate HTD 14M tooth profiles and adheres to strict runout tolerances ( 0.05mm) and static balance standards (ISO Grade G6.3). The solid pulley construction ensures durability and balance for smooth, vibration-free operation in heavy-duty industrial environments.

Customizable Features to Fit Your Application

We provide pulleys in various sizes, teeth counts, and color finishes. Customers can specify bore types, mounting preferences, flange styles, and even request custom machining per drawing or sample. This flexibility allows for tailored solutions in synchronous power transmission applications.

Designed for Industrial Demands

With compatibility for synchronous belts and the capability to handle loads up to 10,000kg, these pulleys are ideal for industrial machinery. The durable aluminum alloy construction, anti-corrosion surface treatments, and shot blasting ensure longevity, while low noise operation benefits high-performance setups.

FAQs of 14mm Pitch Timing Pulleys:

Q: How are the 14mm pitch timing pulleys customized to suit specific industrial requirements?

A: We offer customization for bore types (standard or tapered), mounting styles (pilot bore, finished bore, taper lock), hub types (single or double flange), tooth counts (20180), diameters (56mm504mm), and surface finishes. You can submit a drawing or sample for tailor-made designs.

Q: What finishes and surface treatments are available for these timing pulleys?

A: The pulleys can be finished with anodized, phosphate, or custom coatings, and feature shot blasting and deburring. These treatments enhance corrosion resistance, durability, and ensure a smooth surface for efficient power transmission.

Q: When should I use these timing pulleys in my machinery?

A: These pulleys are suitable for synchronous power transmission applications in industrial machinery where precise timing and heavy-duty performance are essential. Their design allows operation in environments ranging from -20C to 120C.

Q: Where are these timing pulleys manufactured and can they be exported globally?

A: Our pulleys are manufactured in India and are available for export. As a manufacturer and supplier, we provide timely delivery and support to clients worldwide.

Q: What is the process for mounting these pulleys onto shafts?

A: You can choose pilot bore, finished bore, or taper lock mounting, depending on your shaft specifications. Custom bore machining is provided to ensure secure fitment for optimal mechanical performance.

Q: How does the anti-corrosion and precise tooth profile benefit my application?

A: Anti-corrosion coatings guard against environmental wear, prolonging pulley life, while the accurate HTD 14M tooth profile ensures optimal belt engagement and minimizes noise and vibration during operation.

Q: What types of belts and chains are compatible with these pulleys?

A: These timing pulleys are specifically designed for 14mm pitch synchronous belts of various lengths, supporting both single and double groove configurations to match your industrial power transmission needs.
